Barksdale巴士德 450X 系列BiT：Barksdale智能變送器

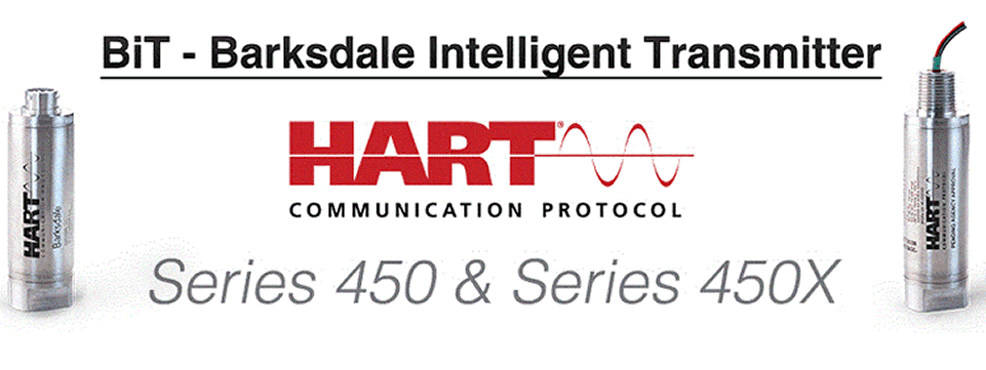

Barksdale巴士德 450X 系列BiT：Barksdale智能變送器 Series 450X BiT: Barksdale Intelligent Transmitters
Barksdale Series 450X BiT: Barksdale Intelligent Transmitters
Barksdale巴士德 壓力傳感器Pressure Transducer

450X 系列描述

Barksdale智能變送器（BiT），450X系列是一款高壓，防爆緊湊型變送器，帶有HART通信協議選項。 支持HART的傳感器可以通過傳統的雙線4-20 mA模擬電流回路進行通信，提供智能功能，如變送器診斷，校準和現場重新測量，比校準的滿量程輸出（10：1調節比）低10倍 。 有三種型號可供選擇：H455X系列，帶HARTComm的4-20 mA輸出。 協議; 455X系列，4-20 mA輸出; 452X系列，1-5 VDC輸出。 這些型號可配置24個標準壓力范圍，從真空到30,000 psi，以及從1/4“NPT到7/16”SAE和HF4高壓釜高壓連接的多個過程連接。 450X系列提供危險區域防爆，符合ATEX，IECEx和cULus認證的北美，歐洲和國際標準。 Barksdale Intelligent Transmitters (BiT), Series 450X is a high pressure, explosion-proof compact transmitter with HART communication protocol option. HART enabled sensors can communicate over the legacy two-wire 4-20 mA analog current loops offering smart features like transmitter diagnostics, calibration, and field re-ranging up to 10 times less than calibrated full scale output (10:1 turndown ratio). Three models are available: Series H455X, 4-20 mA output with HART Comm. Protocol; Series 455X, 4-20 mA output; Series 452X, 1-5 VDC output. These models can be configured with 24-standard pressure ranges from vacuum to 30,000 psi and multiple process connections from 1/4” NPT to 7/16” SAE and HF4 Autoclave high-pressure connections. Series 450X offers hazardous area explosion protection to meet North American, European and international standards with ATEX, IECEx, cULus approvals.

Series 450X BiT: Barksdale Intelligent Transmitters
450X 系列 BiT：Barksdale智能變送器
高壓，高精度變送器
高精度壓力變送器，采用HART通信協議，具有24種標準范圍，從真空到30,000 psi

Barksdale 450X 系列BiT：Barksdale智能變送器 資料下載

Series 450X BiT: Barksdale Intelligent Transmitters
450X系列 BiT：Barksdale智能變送器

防爆壓力變送器Explosion Proof Pressure Transmitter

High accuracy pressure transmitter with HART communicaton protocol with 24 standard ranges from vacuum to 30,000 psi
符合HART通訊協議的高精度壓力變送器，具有24種標準范圍，從真空到30,000 psi

Applications
Production Control Systems
Chemical Injection Systems
Oil & gas pipelines
Petrochemical plants
Production Control Systems
Chemical Injection Systems
Oil & gas pipelines
Petrochemical plants

Installation Manuals
BiT - 450X Installation and Maintenance Instructions
Product Brochures
BiT - Barksdale Intelligent Transmitters Brochure
Certificates
BiT - EU Declaration of Conformity, CE Marking
BiT - HART Certificate of Registration
BiT - HART Certificate of Registration and EDD
BiT, 450 & 450X - Ordinary Location for Canada, UL File # E302981
BiT, 450 & 450X - Ordinary Location, UL File # E302981
BiT, 450X - ATEX Certificate
BiT, 450X - Hazardous Location for Canada, UL File # E146589
BiT, 450X - IECEx Certificate
BiT, 450X – Hazardous Location , UL File E146589
Operating Manuals
BiT - Installation and Operation Manual
Datasheets
BiT-Series 450X Datasheet
Details

應用領域
生產控制系統
化學注射系統
石油和天然氣管道
石化廠
生產控制系統
化學注射系統
石油和天然氣管道
石化廠

安裝手冊
BiT-450X安裝和維護說明
產品手冊
BiT-Barksdale智能變送器手冊
證明書
BiT-歐盟符合性聲明，CE標記
BiT-HART注冊證書
BiT-HART注冊證書和EDD
BiT，450和450X-加拿大的普通地點，UL文件＃E302981
BiT，450和450X-普通位置，UL文件＃E302981
BiT，450X-ATEX認證
BiT，450X-加拿大的危險場所，UL文件＃E146589
BiT，450X-IECEx證書
BiT，450X –危險場所，UL文件E146589
操作手冊
BiT-安裝和操作手冊
數據表
BiT-Series 450X數據表
細節

描述Description

Barksdale智能變送器（BiT），450X系列是帶有HART?通信協議選件的高壓防爆緊湊型變送器。啟用HART?的傳感器可以通過傳統的兩線制4-20 mA模擬電流回路進行通信，提供智能功能，例如變送器診斷，校準和現場重新量程，其范圍比校準的滿量程輸出小10倍（調節比為10：1） 。提供三種型號：H455X系列，帶HART Comm的4-20 mA輸出。協議; 455X系列，4-20 mA輸出; 452X系列，1-5 VDC輸出。這些型號可配置24個標準壓力范圍，從真空到30,000 psi，以及從1/4“ NPT到7/16” SAE和HF4高壓滅菌器高壓連接的多個過程連接。450X系列可提供危險區域防爆保護，以滿足北美Barksdale Intelligent Transmitters (BiT), Series 450X is a high pressure, explosion-proof compact transmitter with HART communication protocol option. HART enabled sensors can communicate over the legacy two-wire 4-20 mA analog current loops offering smart features like transmitter diagnostics, calibration, and field re-ranging up to 10 times less than calibrated full scale output (10:1 turndown ratio). Three models are available: Series H455X, 4-20 mA output with HART Comm. Protocol; Series 455X, 4-20 mA output; Series 452X, 1-5 VDC output. These models can be configured with 24-standard pressure ranges from vacuum to 30,000 psi and multiple process connections from 1/4” NPT to 7/16” SAE and HF4 Autoclave high-pressure connections. Series 450X offers hazardous area explosion protection to meet North American, European and international standards with ATEX, IECEx, cULus approvals.

450X 系列特征

• 輕巧，緊湊且全焊接的堅固不銹鋼結構Lightweight, compact and all-welded rugged stainless steel construction
• 高性能傳感器，可實現高精度High performance sensors for high accuracy
• 具有診斷和現場校準功能的可選HART通信協議，減少了維護時間和成本；和10：1的量程比，用于重新量程，保持高精度，并允許一個零件編號用于多個壓力范圍Optional HART communication protocol with diagnostics & field calibration, reducing maintenance time and cost; and 10:1 turndown ratio for re-ranging, maintaining high accuracy and allowing one part number for multiple pressure ranges
• 高精度：±0.1％和±0.25％FSO（（L，H，R）High accuracy: ±0.1% and ±0.25% FSO, (L,H,R)
• cULus，ATEX，IECEx和單密封認證cULus, ATEX, IECEx and Single Seal certifications
• 具有IP66和IP67以及NEMA 4X，7和9等級的防爆外殼Explosion proof enclosure with IP66 & IP67 and NEMA 4X, 7 & 9 ratings
• 符合CE，CRN和NACE標準，并具有出色的EMI / EMC保護CE, CRN, and NACE compliant and superior EMI/EMC protection
• 工廠密封，環保，無鹵素電線和電纜Factory sealed, environment friendly, halogen free wires and cable


450X 系列技術規格

一般規格*
