Barksdale巴士德 9671X，9681X，9692X系列防爆緊湊型開關
Barksdale巴士德 9671X，9681X，9692X系列防爆緊湊型開關
Series 96201,96211,96221 Explosion Proof Compact Switch

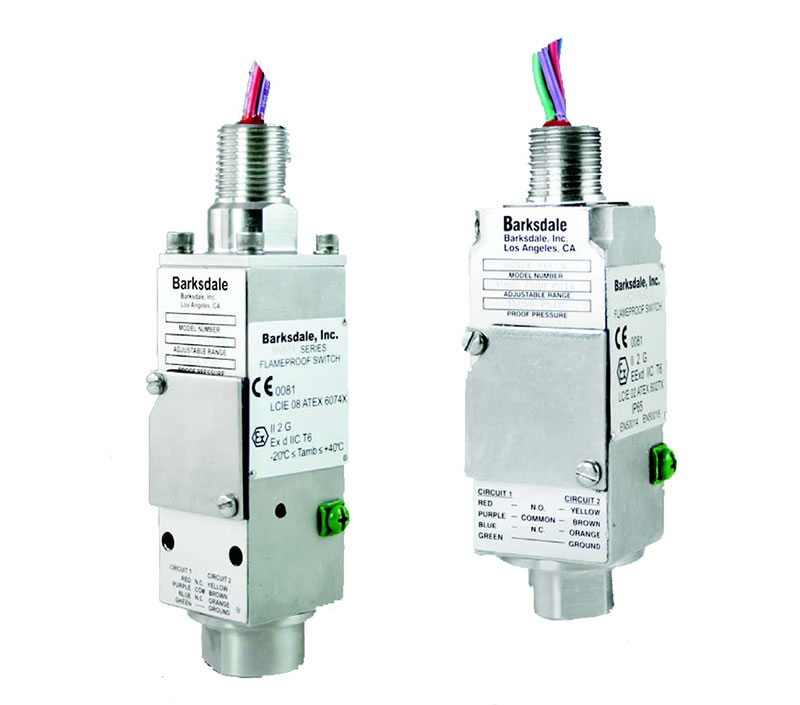

Barksdale Series 9671X，9681X，9692X Explosion Proof Compact Switch
Barksdale巴士德 機械式壓力開關 Mechanical Pressure Switches

9671X，9681X，9692X系列描述

Barksdale的防爆緊湊型壓力開關是危險環境液壓應用和許多其他工業控制的選擇。 9671X / 9681X系列產品可提供高達500 psi的真空和壓力范圍，高防爆壓力為1000 psi，9692X系列可提供高達10,000 psi的壓力范圍和15,000 psi的高防爆壓力，使用SPDT或DPDT微動開關。 堅固的設計為您的關鍵應用提供了所需的可靠性。 Barksdale's explosion proof compact pressure swtiches are ideal for hazardous location hydraulic applications and many of your other industrial control needs. Series 9671X/9681X are available in vacuum and pressure ranges up to 500 psi with a high proof pressure of 1000 psi, and series 9692X is available in pressure ranges up to 10,000 psi with a high proof pressure of 15,000 psi, these pressure switches come with a SPDT or DPDT limit switch. The rugged design provides you with the reliablility you need for your mission critical applications.

9671X，9681X，9692X系列防爆緊湊型開關

Barksdale 9671X，9681X，9692X系列防爆緊湊型開關
資料下載

Series 9671X, 9681X, 9692X
Series 9671X, 9681X, 9692X Explosion Proof Compact Switch
9671X，9681X，9692X系列 防爆緊湊型開關

Compact Vacuum/Pressure Switches

Series 9671X
Compact explosion proof, from 1 - 30 inches Hg.

Series 9681X
Compact explosion proof, low pressure from 1 - 500 psi

Series 9692X
Compact explosion proof, high pressure up to 10,000 psi

Applications
BOP closing units
Safety panels
Pipelines
Chemical and petrochemical plants
Pulp and paper mills
Pump and gas compressors
Turbines
Hazardous location dual seal approved for Canada

Certificates
ATEX 6074X-9671X-9681X-9692X-T9692X
ATEX QAN Certificate
IECEx LCIE 17.0001X-9671X-9681X-9692X-T9692X
KGS 9692X Series Certificate - Korean
UL E37043-96XX-BX-DX
Approvals
CSA Dual Seal Approval
KGS Approval
Datasheets
Diaphragm Seals
Pressure Switch Products Supplemental Guide
Series 9671X, 9681X, 9692X Datasheet
Miscellaneous
Pressure Adjustment Instructions
Details

緊湊型真空/壓力開關

9671X系列
緊湊型防爆，從1到30英寸汞柱。

9681X系列
緊湊型防爆，低壓范圍為1-500 psi

9692X系列
緊湊型防爆，高壓高達10,000 psi

應用領域
國際收支平衡點
安全面板
流水線
化工廠和石油化工廠
制漿造紙廠
氣壓縮機
渦輪機
危險場所雙重密封已獲加拿大批準

證明書
ATEX 6074X-9671X-9681X-9692X-T9692X
ATEX QAN證書
IECEx LCIE 17.0001X-9671X-9681X-9692X-T9692X
KGS 9692X系列證書-韓文
UL E37043-96XX-BX-DX
批準書
CSA雙密封認證
KGS批準
數據表
隔膜密封
壓力開關產品補充指南
9671X，9681X和9692X系列數據表
壓力調整說明
細節

描述Description

Barksdale的防爆緊湊型壓力開關是危險場所液壓應用以及您的許多其他工業控制需求的選擇。9671X / 9681X系列可在真空和壓力范圍為500 psi的情況下提供1000 psi的高耐壓壓力，而9692X系列系列可在壓力為10,000 psi范圍內提供的15,000 psi的高耐壓條件。 SPDT或DPDT限位開關。堅固的設計為您提供關鍵任務應用程序所需的可靠性。
Barksdale's explosion proof compact pressure swtiches are ideal for hazardous location hydraulic applications and many of your other industrial control needs. Series 9671X/9681X are available in vacuum and pressure ranges up to 500 psi with a high proof pressure of 1000 psi, and series 9692X is available in pressure ranges up to 10,000 psi with a high proof pressure of 15,000 psi, these pressure switches come with a SPDT or DPDT limit switch. The rugged design provides you with the reliablility you need for your mission critical applications.

9671X，9681X，9692X系列特征

• 可提供隔膜密封選項Diaphragm Seal Option Available
• NEMA 4X，7和9NEMA 4X, 7 & 9
• 在操作期間安全調整Safe to Adjust During Operation
• 防撬蓋Tamper Proof Cover
• SPDT和DPDT開關選項
• NACE合規
• Div 1＆2應用的雙重密封
• UL，CSA和ATEX認證

9671X，9681X，9692X系列技術規格

接線代碼
