雙溫度開關的好處 The benefits of a dual temperature switch

為什么選擇雙溫開關？ 大量的功能使它們成為多種工業應用的理想選擇。 但不要相信我們的話； Barksdale 是 電子雙溫度開關 的領先代表，包括其尖端的 BTS3000 。 誰能更好地告訴我們雙溫度開關的好處？ 第 3000 代 是 Barksdale 產品組合中最新的令人興奮的溫度、壓力、液位和流量傳感器系列。 其中包括我們的 BTS3000 電子溫度開關設計，具有多種功能，使其成為多種工業應用的理想選擇。

具有功能的雙溫度開關

首先，BTS3000采用緊湊型設計，高約110mm，直徑約41mm。 這允許緊湊的柜內安裝，同時仍保持高度的功能性。 大型 14 段、四位斜角 LED 顯示屏不僅美觀，而且可以從多個方向輕松查看。

對于倒置安裝，內部軟件可以將顯示屏旋轉 180 度以便于查看。 顯示器外殼和電氣連接也都可旋轉 320 度。 因此，安裝變得更簡單、更通用且更便宜。 高水平的 EMI 保護還允許在當今可能存在大功率設備和步話機的工廠中實現穩定的信號輸出。

此外，IP65/IP67 環境等級外殼使該裝置適用于最潮濕的環境，甚至是短暫的浸沒。 裝置的溫度范圍從 -22° 到 +280°F，標準過程連接包括 G1/4”M 和 1/4” NPT M 型。 此外，BTS3000 通過提供 4 到 20 mA 和 0 到 10 VDC 的模擬輸出信號來提供變送器功能。

BTS3000 提供三種方便的配置； 雙開關、帶模擬輸出的雙開關或帶模擬輸出的單開關。 設定點和死區可通過用戶友好的菜單輕松調整，其中遲滯可設置為其測量范圍的 125%。

BTS3000適合哪些應用？

BTS3000 溫度開關是要求精度、靈活性和長壽命的 溫度控制應用 的理想解決方案。 它們常用于機床行業、液壓和氣動系統、注塑機、潤滑系統、工程機械和汽車行業。

特點和好處

有關 Barksdale 全方位產品和服務的更多信息，請聯系 010-84282935 或訪問 www.85755448.com.cn。

The benefits of a dual temperature switch

Why choose a dual temperature switch? A vast array of features that make them ideal for multiple industrial applications for one thing. But don't take our word for it; Barksdale are a leading exponent of electronic dual temperature switches , including their cutting edge BTS3000 . Who better to talk us through the benefits of a dual temperature switch?

The Generation 3000 is the latest exciting series of temperature, pressure, level and flow sensor family in the Barksdale portfolio. Within that comes our BTS3000 electronic temperature switch design, featuring a wide variety of functions that make it ideal for multiple industrial applications.

A dual temperature switch loaded with features

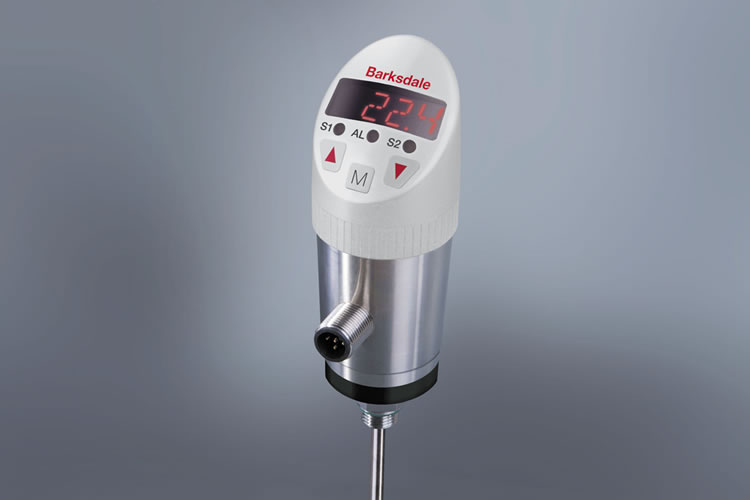

First of all, the BTS3000 features a compact design that is approximately 110mm in height and 41mm in diameter. This allows for tight in-cabinet installations, whilst still maintaining a high degree of functionality. The large 14-segment, four-digit beveled LED display is not only aesthetically pleasing but also enables easy viewing from many directions.

For upside down installations, the internal software can rotate the display 180 degrees for easy viewing. The display housing and electrical connection are also both rotatable by 320 degrees. Installation therefore becomes simpler, more versatile, and cheaper. High levels of EMI protection also allow for stable signal output in today's factories, where high powered equipment and walkie-talkies may be present.

Additionally, the IP65/IP67 environmental rated housing makes this unit suitable for the wettest of environments and even brief submersion. Temperature ranges on the unit vary from -22° to +280°F and standard process connections include the G1/4”M and 1/4” NPT M style. Plus, the BTS3000 offers transmitter functionality by supplying analog output signals of 4 to 20 mA and 0 to 10 VDC.

The BTS3000 is available in three handy configurations; dual switch, dual switch with analog output, or single with analog output. Setpoints and deadband are easily adjusted via a user-friendly menu, where hysteresis can be set up to 125 per cent of its measuring range.

What applications are suitable for the BTS3000?

The BTS3000 temperature switch is an ideal solution for temperature control applications requiring precision, flexibility and long life. They are commonly used in the machine tool industry, hydraulic and pneumatic systems, injection moulding machines, lubrication systems, construction machinery and the automobile industry.

Features and benefits

For more information about Barksdale's full range of products and services please contact 010-84282935 or visit www.85755448.com.cn.
