關于壓力開關的常見問題

了解系統動力學對于開關選擇至關重要。 目標是獲得 在壽命、準確性、可靠性和易用性方面滿足您期望的 壓力開關。 在這里， Barksdale 回答了您在為特定應用選擇理想壓力開關時應該提出的所有問題。

壓力開關多久啟動一次？

這將對開關壽命、系統停機時間和大修計劃產生直接影響。 機電開關 易受金屬疲勞的影響。 波登管或隔膜開關通常會提供一百萬次循環。 而活塞或隔膜密封活塞開關將提供 2-1/2 百萬次循環。 由于固態壓力開關不受金屬疲勞的影響，它通常具有 1 億次循環壽命。

循環速度是多少？

波登管或膜片開關的金屬就像彈簧一樣，因此應避免高速循環。 當循環速率低于每分鐘 25 次時，波登管或隔膜開關是不錯的選擇。 對于每分鐘 50 次循環的循環速率，隔膜活塞或活塞開關將分別提供 1 到 2-1/2 百萬次循環。 只要循環率超過每分鐘 50 次，就應該選擇固態開關，因為金屬疲勞不是問題。

開關點與工作壓力范圍有何關系？

選擇開關點和開關工作壓力范圍 之間的適當關系 很重要，因為這種關系會影響精度和使用壽命。 固態和機電壓力開關的一般規則是不同的。 選擇固態壓力開關時，開關點通常應在工作范圍的較高25％。 對于機電開關，開關點應在工作范圍的中間。

耐壓要求是多少？

證明壓力是開關應該看到的最大壓力。 在計算 開關耐受壓力 時，包括尖峰和浪涌以避免損壞開關。

壓力開關會受到高壓尖峰和浪涌的影響嗎？

壓力波動和瞬時壓力峰值可能大大超過系統的正常工作壓力。 波登管、隔膜和固態壓力開關都對浪涌和尖峰敏感。 如果預計系統會受到沖擊，請選擇具有更高耐壓的開關或安裝一個緩沖器，以允許快速尖峰通過開關移動而不會損壞。

需要什么精度？

壓力開關的精度與儀器的精度不同。 對于壓力開關，精度是開關在其設定點重復操作的能力。 如有疑問，指定可用的最佳精度總是更容易。

需要多少個開關點？

在某一點感應壓力時，只需要一個開關點是正常的。 然而，系統需要兩個甚至四個開關點（例如高、低、高-高、低-低）來監控、控制或報警的情況并不少見。 在設計系統時，您可以為每個開關點選擇一個開關，或者一個能夠處理多達三個獨立開關點的壓力開關。

需要什么類型的外殼？

裸線開關沒有自己的外殼。 它們通常安裝在面板或多功能外殼內。 外殼開關避免了暴露位置的松散電線可能造成的危險，通常有多種額定值可供選擇，最流行的工業開關外殼是 NEMA 4 和 NEMA 4X，適用于腐蝕性環境。

是否需要調整設定值？

在某些應用中，您不希望任何人更改設定值。 在其他情況下，需要根據系統動態進行調整。 機電開關的型號為出廠設置，具有盲調節功能，或提供校準的調節旋鈕。 固態開關通過數字讀數提供精確的鍵盤調整。

需要緊死區還是寬死區？

死區是壓力驅動開關中的驅動點和重新驅動點之間的差異。 死區 有時被稱為驅動值、差分或滯后。 開關的死區可以在整個壓力范圍的某個百分比上固定或調整。 傳統上，安全服務使用窄死區。 更寬的死區用于液壓裝置等控制回路。 波登管和膜片開關的死區較窄或較窄，活塞式開關的死區較寬，而固態開關的死區可完全調節至滿量程的 100%。

精度還是壽命？

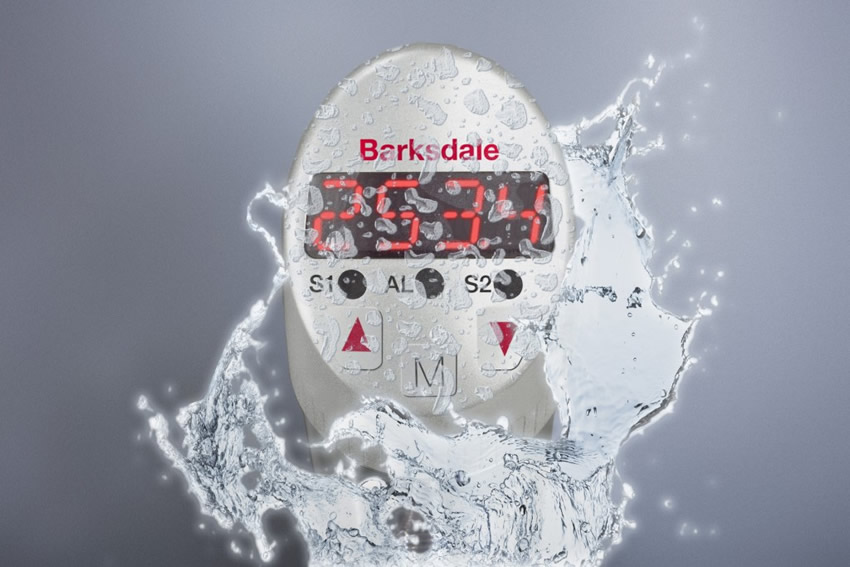

選擇 固態壓力開關 時，精度和壽命之間沒有權衡。 您只需選擇開關點位于壓力范圍上 25% 的壓力開關即可。 機電開關具有不斷受到壓力的傳感元件（隔膜、管和活塞），因此開關點的位置與工作范圍的關系對于精度和壽命都至關重要。 最好的折衷辦法是在操作范圍的中間操作機電壓力開關。 Barksdale 的新型 BPS3000 電子壓力開關是 Generation 3000 系列的一部分，具有無與倫比的精度。

是否需要更多功能而不僅僅是一個開關？

很多時候，系統需要的不僅僅是一個壓力開關來打開和關閉一個電路。 可能還需要本地儀表和遠程信號。 傳統方法是使用單獨的設備。 然而，基于微處理器的固態壓力開關改變了動態。 一個固態開關最多可提供四個獨立開關、數字讀數和模擬/數字輸出。

有關 Barksdale 全系列開關產品的更多信息，請聯系 010-84282935 或訪問 www.85755448.com.cn。

Frequently asked questions about pressure switches

Understanding system dynamics is crucial to switch selection. The goal is to obtain a pressure switch that will meet your expectations in terms of life, accuracy, reliability, and ease of use. Here, Barksdale answers all the questions you should be asking when choosing the ideal pressure switch for your particular application.

How often will the pressure switch be activated?

This will have a direct impact on switch life, system downtime and the overhaul schedule. Electromechanical switches are subject to metal fatigue. A bourdon tube or diaphragm switch will typically provide one million cycles. Whereas a piston or diaphragm sealed piston switch will provide 2-1/2 million cycles. Because a solid-state pressure switch is not subject to metal fatigue, it will typically have a 100 million cycle life.

What is the cycle speed?

The metal of a bourdon tube or diaphragm switch acts like a spring, so high-speed cycles should be avoided. When the cycle rate is less than 25 per minute, a bourdon tube or diaphragm switch is a good choice. For cycle rates to 50 cycles per minute, a diaphragm piston or piston switch will provide 1 to 2-1/2 million cycles, respectively. A solid-state switch should be selected whenever the cycle rate exceeds 50 cycles per minute, since metal fatigue is not a problem.

How does the switch point relate to operating pressure range?

Selecting the proper relationship between the switch point and the operating pressure range of a switch is important because this relationship can affect accuracy and useful life. The general rule is different for solid-state and electromechanical pressure switches. When a solid-state pressure switch is selected, the switch point should normally be in the upper 25 per cent of the operating range. For an electromechanical switch, the switch point should be in the middle of the operating range.

What is the proof pressure requirement?

Proof pressure is the maximum pressure that the switch should ever see. When calculating the switch proof pressure , include spikes and surges to avoid damage to the switch.

Will the pressure switch be subjected to high-pressure spikes and surges?

Pressure surges and transient pressure spikes can greatly exceed the normal operating pressure of a system. Bourdon tube, diaphragm and solid-state pressure switches are all sensitive to surges and spikes. If it is anticipated that the system is subject to surges, select a switch with a higher proof pressure or install a snubber which will allow fast spikes to move by the switch without damage.

What accuracy is needed?

Accuracy for a pressure switch is defined differently than accuracy for an instrument. For a pressure switch, accuracy is the ability of the switch to repetitively operate at its setpoint. When in doubt, it is always easier to specify the best accuracy available.

How many switch points are needed?

When sensing pressure at one point, it is normal that only one switch point is required. However, it is not unusual for a system to require two or even four switch points (e.g. high, low, high-high, low-low) to be monitored, controlled or alarmed. In designing a system, you could select a single switch for each switch point, or a single pressure switch capable of handling as many as three separate switch points.

What type of housing is needed?

Stripped switches don't have their own housing. They're normally installed inside a panel or multi-function enclosure. Housed switches avoid possible hazards from loose wires in exposed locations and are normally available in a variety of ratings, with the most popular industrial switch housings being NEMA 4 and NEMA 4X for corrosive environments.

Is there a need to adjust the setpoint?

In some applications, you wouldn't want anyone changing the setpoint. In other situations, adjustment is required based on system dynamics. Electromechanical switches have models that are factory set, have blind adjustment capability, or offer calibrated adjustment knobs. Solid-state switches offer precise keypad adjustments with digital readout.

Is a tight or broad deadband needed?

Deadband is the difference between the actuation point and the re-actuation point in a pressure actuation switch. Deadband is sometimes referred to as actuation value, differential or hysteresis. The deadband of a switch can be fixed or adjusted over a percentage of the full pressure range. Traditionally, a narrow deadband is used in safety services. A wider deadband is used on control circuits like hydraulic units. Tight or narrow deadbands tend to be found on bourdon tube and diaphragm switches, wide deadbands are available in piston-type switches, while solid-state switches offer a fully adjustable deadband to 100 per cent of full scale.

Accuracy or life?

When selecting a solid-state pressure switch there is no trade-off between accuracy and life. You simply choose a pressure switch where the switch point is in the upper 25 per cent of the pressure range. Electromechanical switches have sensing elements (diaphragms, tubes and pistons) that are constantly being stressed and thus the location of the switch point versus the operating range is critical to both accuracy and life. The best compromise is to operate the electromechanical pressure switch in the middle of the operating range. Barksdale's new BPS3000 electronic pressure switch, part of the Generation 3000 range, offers unrivalled accuracy.

Are more features needed than just a switch?

Many times the system requires more than a pressure switch to open and close a circuit. A local gauge and remote signal may also be required. The traditional approach is to use individual devices. However, microprocessor-based solid-state pressure switches change the dynamics. One solid-state switch can offer up to four independent switches, digital readouts and analog/digital outputs.
